ต้องใช้ร่วมกับ Defi-Link ADVANCE Control Unit เท่านั้น
รายละเอียด

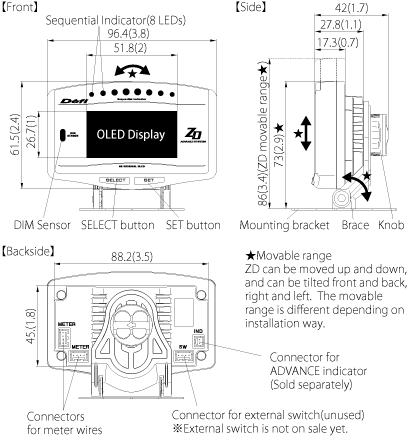

SIZE in mm
(inches)
Power supply
voltage
10V to 16V DC (for 12V vehicles)
ADVANCE Control
unit Current consumption
+B line: 2A (IGN ON), 5mA (IGN OFF)
ILM line: 800mA
(Maximum value obtained when connecting 7 gauges and ZDs)
Operation temperature
range
-20
+60, -4
+140 (Under
80% relative humidity)
Storage temperature
range
-40
+80, -40
+176 (Under
80% relative humidity)
Display
Range
Speed
0 to 400km/h(0 to 240MPH)
Tachometer
0 to 11,000rpm
Oil Pressure (OP1*)
0 to 1,000kPa(0 to 145PSI)
Fuel Pressure
(OP2*)
0 to 600kPa(0 to 87PSI)
Oil Temperature
(OP3*)
0 to 150(32
to 302)
Water
Temperature
(OP4*)
0 to 150(32
to 302)
Exhaust temperature
(OP5*)
0 to 1,100(32
to 2,010)
Volt
10 to 16V
Clock
12 hours display
Applicable speed
pulse
2, 4, 8, 16pulse(mainly for Japanese vehicles)
Pulse free setting: 1,274 to 16,562pulse/km,
2,051 to 26,665pulse/mile(corresponds to 2 to 26pulse)
Applicable number
of cylinders
1, 2, 3, 4, 5, 6, 8 (4cycle)
Weight
400g, 0.9lb (including box, mounting parts,
wires, and accessories)
*To display OP1 through OP5
in Display range, the sensor sets OP1 through OP5 need to be
purchased separately. (Ex. To display Oil pressure, AD Oil pressure
sensor set OP1 needs to be purchased separately.) However, the
ADVANCE CR or the ADVANCE BF is already installed, the sensor
set is not necessary to be purchased separately.
*ADVANCE ZD cannot display turbo or intake manifold pressure.
+60
+140
