ไม่สามารถใช้ร่วมกับ Defi-Link ADVANCE Control Unit ได้
52&60mm series
Power supply voltage
DC10 to 15V(Exclusive for 12V vehicle)
Current consumption
+B line: MAX 120mA (Dark current 0mA)
IGN line: MAX 120mA
ILM line: MAX 2mA
Dial color
Black (invisible until the ignition is turned on)
Illumination color
Blue, Red, White
*The color cannot be switched.
Pointer: red

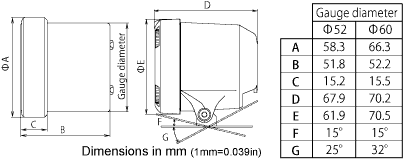

SIZE
NOTE
*This product is for only on vehicles with a 12V electrical system. Never use this product on 24V vehicles.
*Products can not be installed in altered vehicles.
*Proper sensor attachments are necessary.
